84W AC/DC Desktop Power Adapter

Features:
Universal input: 100-240VAC 50-60Hz
Output Power: 84W
Inlet Type: C8, C6, C14 optional
Output: 5V/10A, 9V/8A, 12V6A, 12V7A, 24V3A, 24V 3.5A, and 48V 1.5A
Certificates: CCC,UL, cUL, CE, FCC, RCM, C-TICK, TUV, UKCA, KC, and BIS
Safety Standard: IEC62368, IEC60601, IEC1310, IEC61558, IEC60335, IEC61347
Warranty: 3 years
Color: black or white optional.

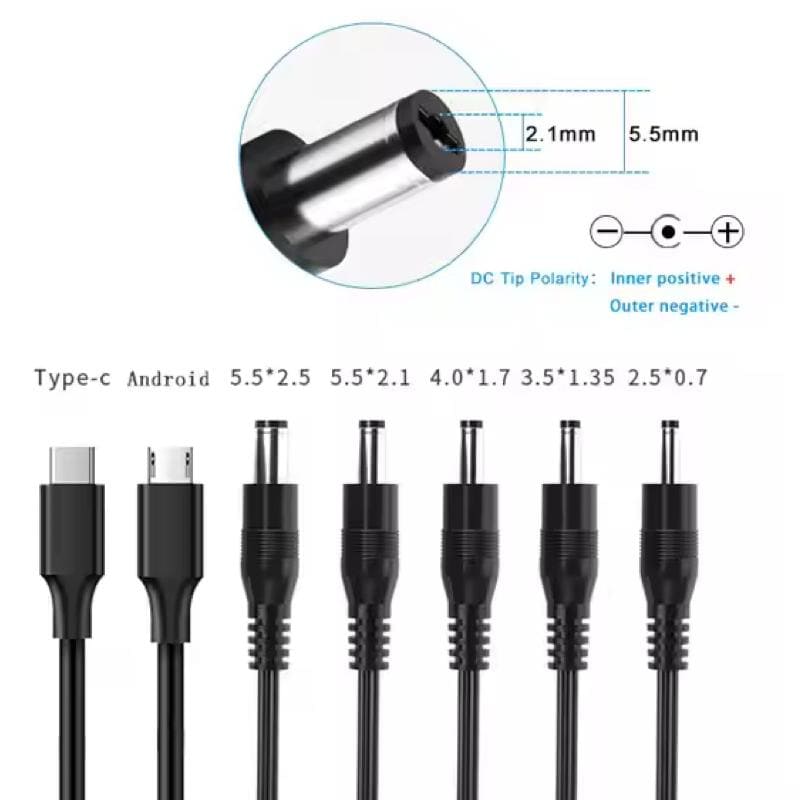

DC jack: 5.5*2.5mm, 5.5*2.1mm, 4.0*1.7mm, Mini 4pin, Molex connector…
Size: 112.6×60.2×35.0mm (LxWxH)

Contact & Share

SMARTPOWER 84W desktop power adapters Specification:

Product Name	84W desktop power adapter, 84W desktop AC/DC adapter, 84W desktop power adaptor
Type	Desktop power adapter
Material	PC Fireproof Material
Input	100-240VAC ± 10%; 50/60Hz; 0.8A Max
Output	9V/8A, 12V7A, 24V 3.5A, and 48V 1.75A Or consult us for specific voltage and current to see if it can be customized or not

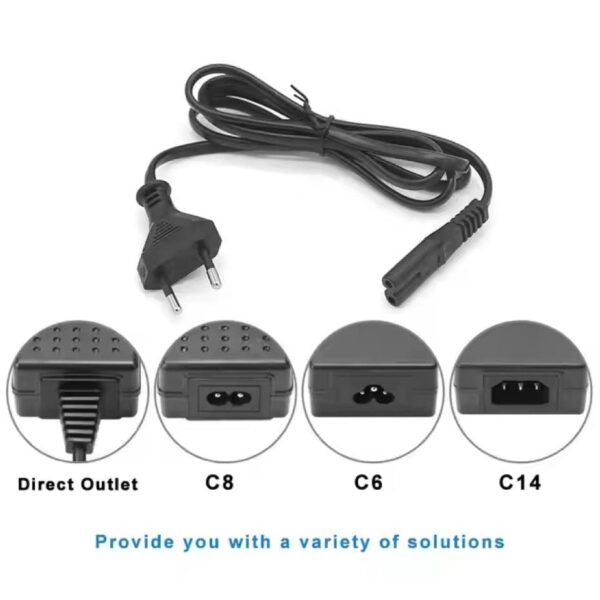

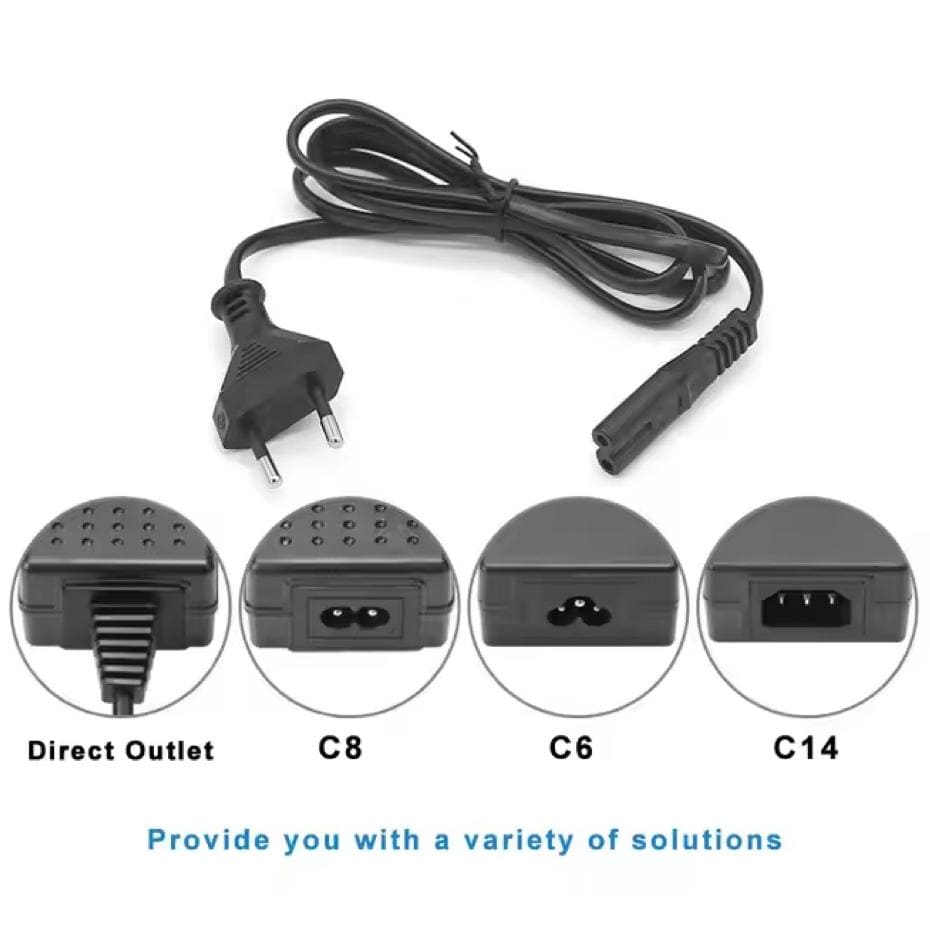

Inlet	C8/C6/C14 inlet or attached with AC power cord
Protection	Over-temperature protection, over-charge, over-voltage, over-current, short circuit protection
Advantages	Ultra-small size, light weight, streamline, fully sealed and easy to carry Low-cost design, high reliability, ultrasonic lamination, fireproof housing constant voltage mode, high precision, low noise
Certificates	CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH
Energy efficiency	ERP / CEC-VI standard CoC Tier 2
Safety standards	IEC62368, IEC60335, IEC61558, IEC1310, IEC61347
Package	Specialized shipping box for sample PP bag package in outer carton with die cut cards protection for bulk order custom available
Usage	Intelligent home appliance	medical beauty machines	Consumer electronics	Sports equipment
	sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc.	facial machines, hair removal device, etc.	tablet, laptop, switch, set top box, electronic musical instrument, etc.	massage gun, E-bike, scooter, etc.

MODEL LIST

84W DESKTOP POWER ADAPTER
POWER	MODEL	INPUT	OUTPUT VOLT	OUTPUT CURRENT	Certificates	inlet
84W Series	SP-PAD090800-C8EU	100-240VAC	9V	8.0A	UL,CE,FCC, RCM,C-TICK, UKCA	C8, C6, C14 or attached with ac cable
	SP-PAD120700-C8EU		12V	7.0A
	SP-PAD150560-C8EU		15V	5.6A
	SP-PAD240350-C8EU		24V	3.5A
	SP-PAD480175-C8EU		48V	1.75A
