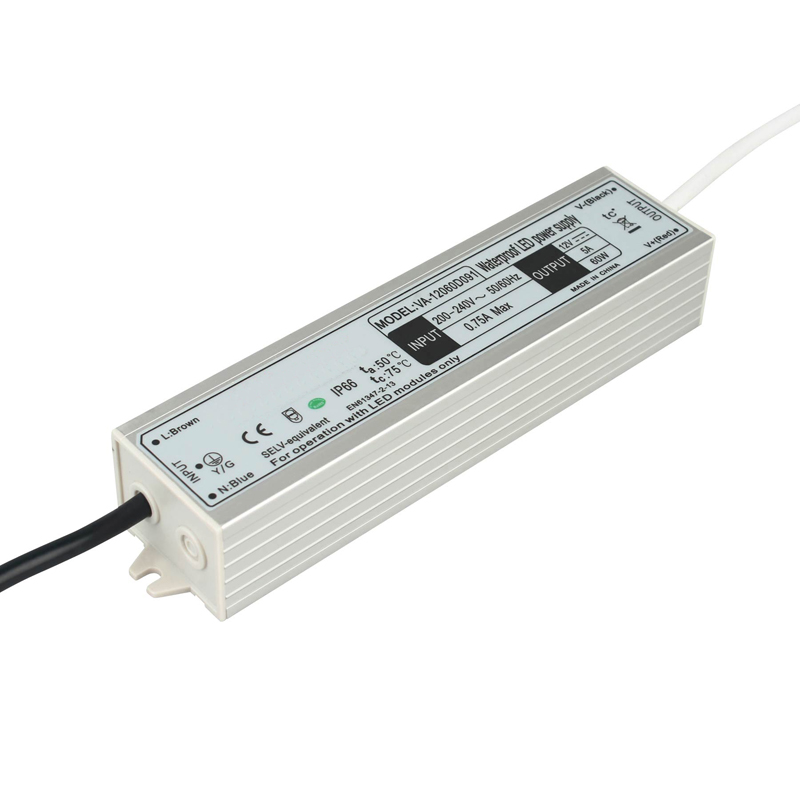

60W Constant Voltage LED Driver Specification
| Item No | VA-12060D091 | VA-24060D091 | VAS-12060D1681 | VAS-24060D1681 | |
| Output Voltage | 12V | 24V | 12V | 24V | |
| Output Current | 5A | 2.5A | 5A | 2.5 A | |
| Rated power | 60W | ||||
| Input Voltage | 170~264Vac or 240~374Vdc | ||||
| Efficiency Typ.) | 86% | 89% | 86% | 87% | |
| Power factor | PF≥0.5/230Vac (at full load) | PF≥0.9/230V(at full load) | |||
| Waterproof Rating | IP67 | ||||
| Warranty | 2/3 years | ||||
| Certificate | CE, Rohs, BIS | CE, Rohs, BIS, EMC, SAA | |||
| Working temperature | -25°C~+50°C | ||||
| Working humidity | 10%~90%RH, No Condensation | ||||
| Storage temperature and humidity | -25°C~+75°C, 5%~95%RH | ||||
| Dimension | 179*41*31mm(L*W*H) | 182*56*30mm(L*W*H) | |||
Features:
Small size, High efficiency, High reliability, Long lifetime; Ip67 rating
Protection: Overload, Over-voltage, Short-circuit protection
100% full load aging test. Low output ripple noises;
Application:
Signage and Back Lit Letters, Self-Content Channel Letters, Light Boxes and Raceway
Under-Cabinet Installation, RV/Motorhome Lighting, Accent Lighting, or any Low Voltage Project
Advantages
1. The first factory entered the waterproof LED Power Supply in China mainland;
2. 10 years focus on the LED Power Supply Research and development, Production;
3. Serviced 2,500 customers, including 2000 in China mainland, 500 in overseas markets all over the world;
4. High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 2500 customers;
5. LED Power Supply is the heart of the LED lamps and transformers is the core component of LED Power Supply. For control the quality, we made the transformer by our own factory, this also for the power supply is stable and reliable;
6. Complete certification, UL, SAA, EMC etc., Small factory often lack of this;
7. Electrolytic capacitors and other components are made of giant brand, high-end products with Ruby etc.
8. After-sale guaranteed, real integrity transactions, 1:1 replace the faulty item, but many small factory often irresponsible when face the quality problem, even precarious;
9. Strictly process control, Power supply enter the door is low, but do well is not much, do not do well, even though the same techniques, the same material, do all the things we are not the same, because process control are not the same, Equipment is not the same;
10. Strong r&d team, r&d team has more than 30 people;
11. Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock;
12. Compare with MeanWell, we have the advantages of ODM, OEM, quality unchanged and have competitive price.
