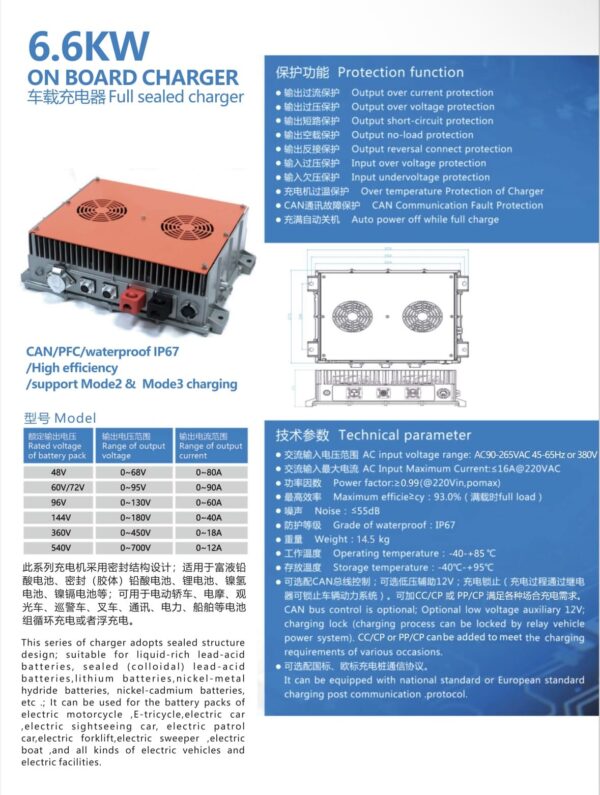

Technical parameter
1. AC input voltage range:90-265VAC;45-65Hz; or 380V
2. AC Input Maximum Current:≤6A@220VAC
3. Power factor:≥99(@220Vin,pomax)
4. Maximum efficiency:93.0%(full load)
5. Noise:≤55dB
6. Grade of waterproof:IP67
7. Weight: 14.5kg
8. Operating temperature:-40℃-+85℃
9. Storage temperature:-40℃-+95℃
10.CAN bus control is optional; Optional low voltage auxiliary 12V,charging lock (charging process can be locked by relay vehiclepower system). CC/CP or PP/Cp canbe added to meet the chargingrequirements of various occasions.
Specification:
| Charger type | lifepo4 charger , Li-ion charger and lead acid charger |
| Input voltage | 90-265VAC;45-65Hz; or 380V |
| Output voltage | 100V |
| Color | Silver / black / customized |
| Max Power | Can be customized |
| Control mode | Intelligent independent digital control chip |
| Customize charging way | Yes. (Pre-charging, automaticly shut off, over charging protection etc) |
| Efficiency | 85-88% |
| Warranty | 2 years |
| Case | Aluminum / plastic |
| Application | Electric motorcycles, sweeper, goft car, e-scooter, forklift, storage energy etc. |
MODEL LIST:
| Rated voltage of battery pack | Max. Output voltage | Max. Output current |
| 48V | 0-68V | 0-80A |
| 60/72V | 0-95V | 0-90A |
| 96V | 0-130V | 0-60A |
| 144V
360V 540V |
0-180V
0-450V 0-700V |
0-40A
0-18A 0-12A |
Protection:
| PROTECTION | Input over voltage protection | AC270±5V |
| Input under voltage protection | AC85±5V | |
| Output over voltage protection | When the maximum output voltage exceeds + 1%, stop the output | |
| Output under voltage protection | When it is lower than – 5% of the minimum output voltage, stop the output | |
| Output over current protection | When the maximum output current exceeds + 1%, stop the output | |
| Over temperature protection | Power drops at 85 degrees and shuts down at 90 degrees | |
| Short circuit protection | Stop output | |
| Anti-reverse protection | YES | |
| Gound protection | ≤100mΩ | |
| CAN communication protection | Automatically stop output when CAN communication fails |
