5W interchangeable plug adapter Specification:
| Item | 5W interchangeable power adapter, 5W detachable plug power adapter, 5W exchangeable power adapter | |
| Type: | Wall mounted power adapter interchangeable plugs | |
| Material | PC Fireproof Material | |
| INPUT | 100-240VAC 50/60Hz 0.3A max | |
| Output | 5V 1A, 5V 1.2A, 9V0.5A, 12V 0.5A detachable power adapter Or consult us for specific voltage and current to see if it can be customized or not |
|
| Features | Ripple & Noise | <120mV |
| Energy star level | Eup 2.0, Doe VI, CEC VI, CoC VI | |
| Efficiency | ERP / CEC-VI standard CoC Tier 2 | |
| Installing | Available for the system of Safety Class I/II | |
| Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing |
| Storage Temp | -20 ~ +85℃ (Refer to “Derating Curve”) | |
| Storage Humidity | 20 ~ 90% RH non-condensing | |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| Cooling Method | by NTC (natural cooling) | |
| Safety&EMC | Safety Standard | IEC62368, IEC60335, IEC61558, IEC1310, IEC61347 |
| Safety Approvals | CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH for more information, please contact us. |
|
| EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
| MTBF | 5K hrs min. MIL-HDBK-217F (25℃) | |

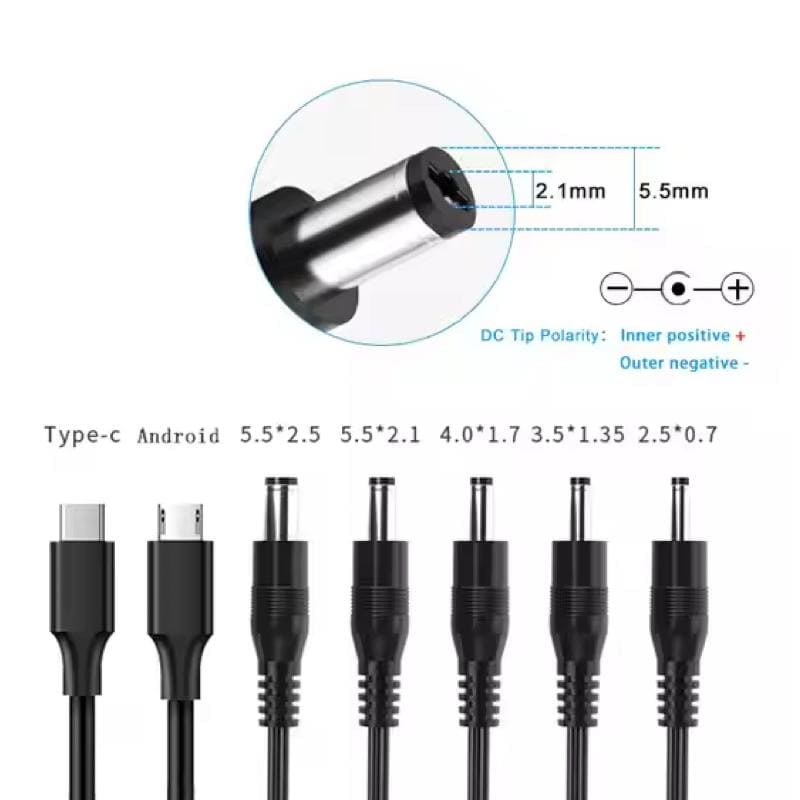

| Machanicals | DC Connectors | USB-A, USB-C, 5.5×2.1mm, 5.5×2.5mm, 4.0×1.7mm, 3.5×1.35mm and more available |
| Dimension | 62.0×39.2×32.1mm (LxWxH) | |
| Packing | 145g; 54pcs/14.5Kg/0.056CBM | |
| Application | Advantage | Ultra-small size, light weight, streamline, fully sealed and easy to carry Low-cost design, high reliability, ultrasonic lamination, fireproof housing constant voltage mode, high precision, low noise |
| usage | sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc. facial machines, hair removal device, etc. massage gun, E-bike, scooter, etc. |
|
MODEL LIST
|

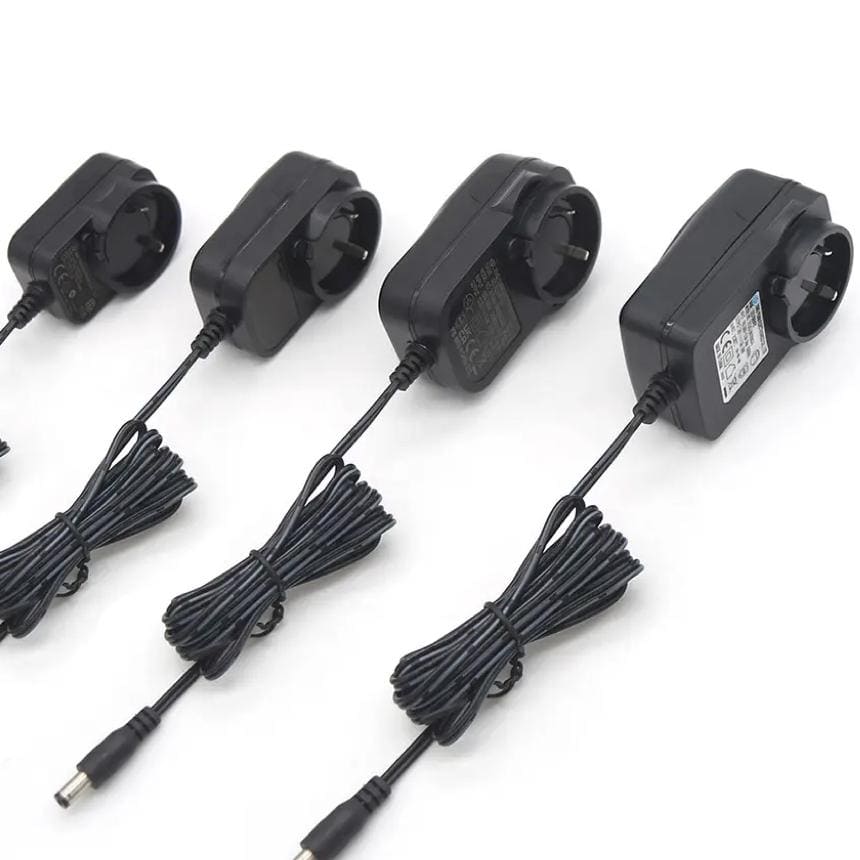

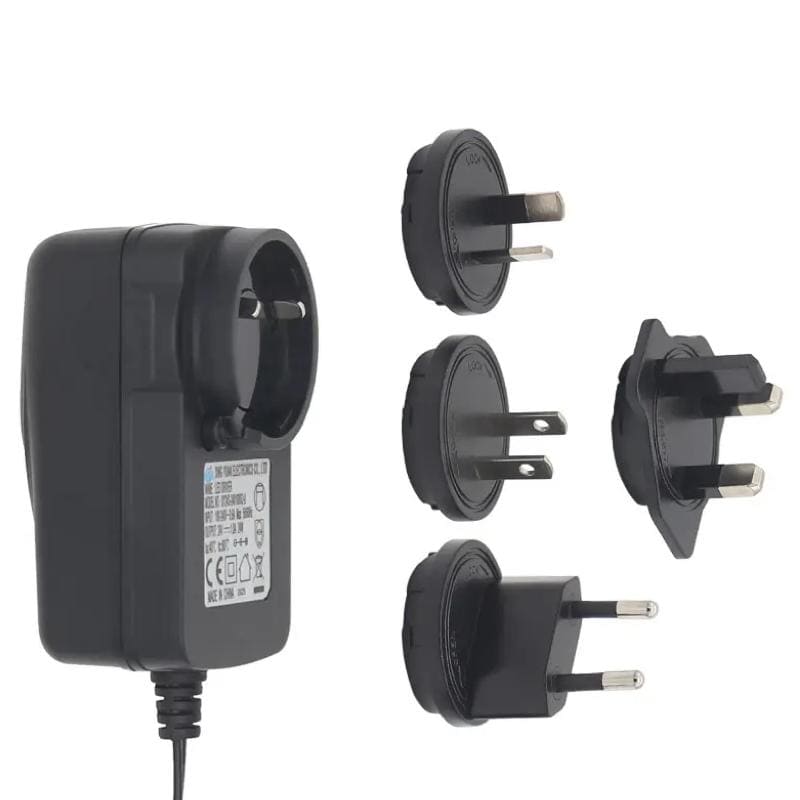

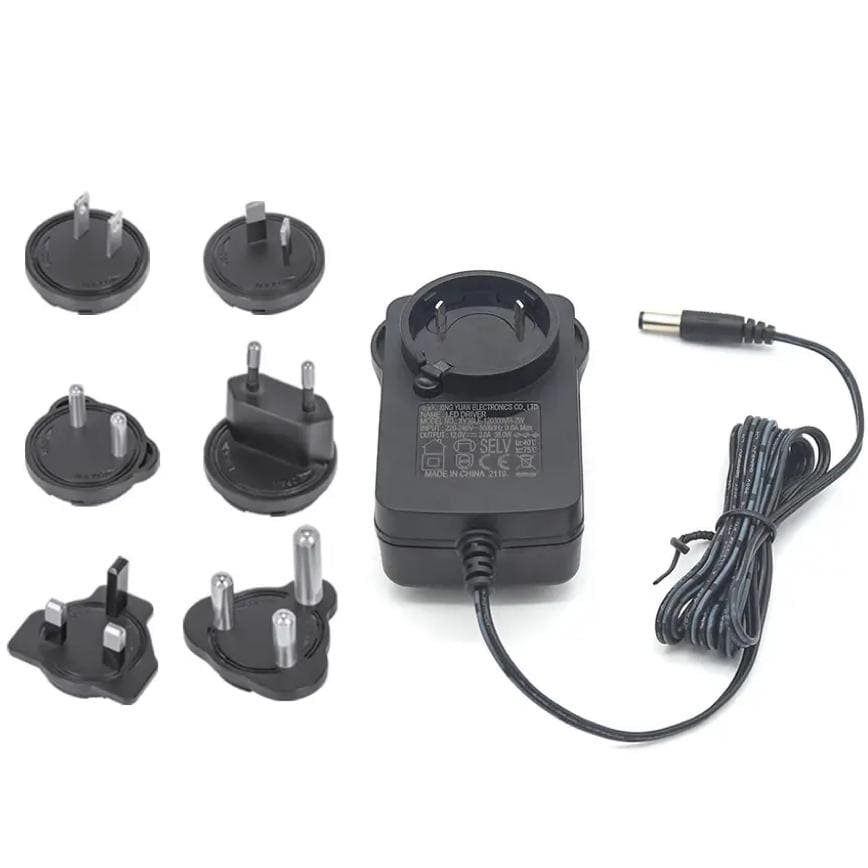

5W Interchangeable PLUG POWER ADAPTER
|
||||||
| POWER | MODEL | INPUT | OUTPUT VOLT |
OUTPUT CURRENT |
Certificates | PLUG |
| 5W Series | SP-PAI050100-04 | 100-240VAC | 5V | 1.0A | UL,CE,FCC, RCM,C-TICK, UKCA | interchangeable |
| SP-PAI0500120-04 | 5V | 1.2A | ||||
| SP-PAI120050-04 | 12V | 0.5A | ||||
| SP-PAI150030-04 | 15V | 0.3A | ||||
| SP-PAI240025-04 | 24V | 0.25A | ||||
