We support customization.
Our POE adapter supports a wide range of transmission rates, including 10/100/1000M/2.5G/5G/10G bps. This versatility ensures compatibility with various Ethernet devices, allowing for smooth and efficient power and data transmission.
Our POE adapter conforms to the IEEE 802.3.af/at/bt POE++ standards. This compliance ensures that the adapter meets the industry standards for power over Ethernet, providing reliable and standardized power delivery to connected devices. It also enables features such as remote device management and power monitoring, enhancing the overall functionality of the POE system.
The POE adapter supports various transmission rates and complies with industry standards. It is compatible with both Passive POE and Active POE implementations, offering flexibility in usage. SmartPower to provide you with a reliable and affordable solution for your POE needs.

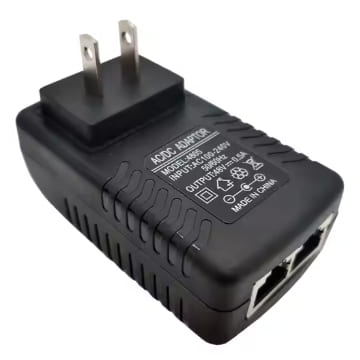

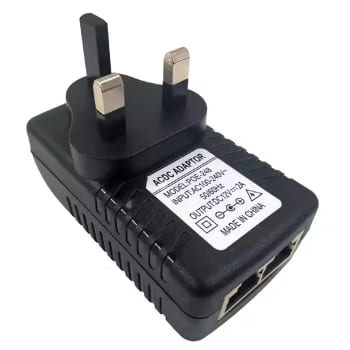

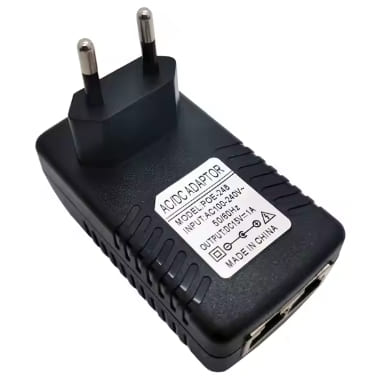

5W 12W 18W 24W Wall Mounted POE Injector Specification:
| Item | 5W 12W 18W 24W 28W Wall Mounted POE Injector, POE Power Adapter, POE injector, Power Over Ethernet for router, Power Over Ethernet adaptor | ||||||
| Model | SP-PIWxxxyyy-zz | ||||||
| INPUT | 100-240VAC 50/60Hz | ||||||
| Output | 12V | 15V | 18V | 24V | 48V | 56V | |
| 0-2A | 0-1.6A | 0-1.33A | 0-1.0A | 0-0.6A | 0-0.5A | ||
| Features | Ripple & Noise | <120mV | |||||
| Energy star level | Eup 2.0, Doe VI, CEC VI, CoC VI | ||||||
| Efficiency | >88% | ||||||
| Installing | Available for the system of Safety Class I/II | ||||||
| Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing | |||||
| Storage Temp | -20 ~ +85℃ (Refer to “Derating Curve”) | ||||||
| Storage Humidity | 20 ~ 90% RH non-condensing | ||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| Cooling Method | by NTC (natural cooling) | ||||||
| Safety&EMC | Safety Standard | UL62368, ETL62368, EN62368, EN61558 | |||||
| Safety Approvals | UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us. |
||||||
| EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 | ||||||
| MTBF | 5K hrs min. MIL-HDBK-217F (25℃) | ||||||
| POE funciton | Protocol | Compatible with IEE802.3af/IEEE802.3at/IEEE802.3bt | |||||
| Protocol type | Passive POE / Active POE (optional) | ||||||
| POE pin | 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 1245(+) 3678(-) / 1236(+) 4578(-) Starlink | ||||||
| Data Speed | 10/100/1000M/2.5G bps ( optional ) | ||||||
| Machanicals | DC PORT | 2*RJ45 :10/100/1000Mbps, Port 1: LAN, Port 2: POE | |||||
| Dimension | 84×46.99×37.1mm (LxWxH) exclude plug | ||||||
| Packing | 100g; 100pcs/12.0Kg/0.056CBM | ||||||
