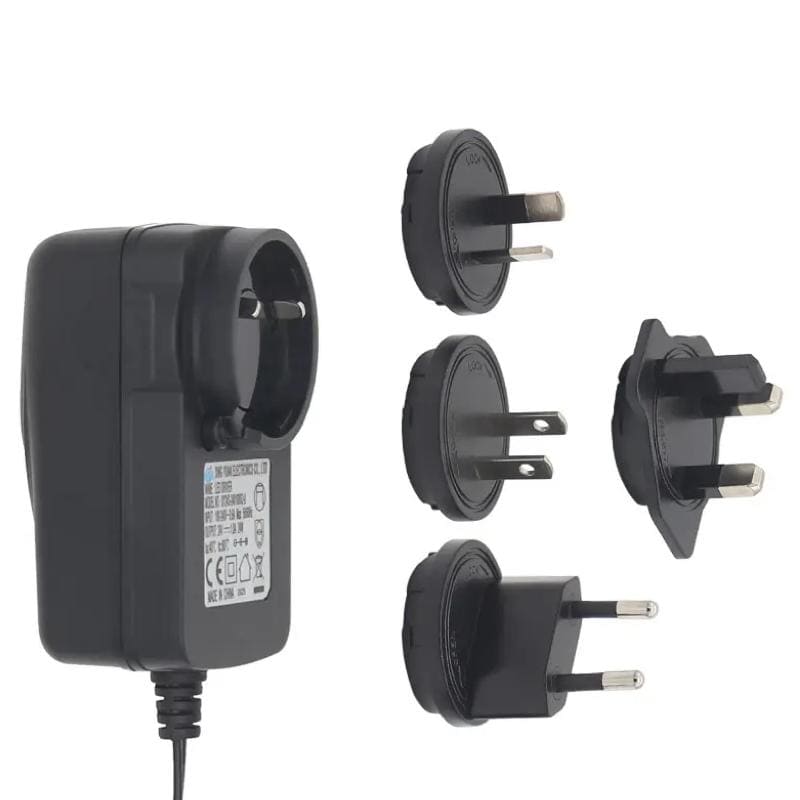

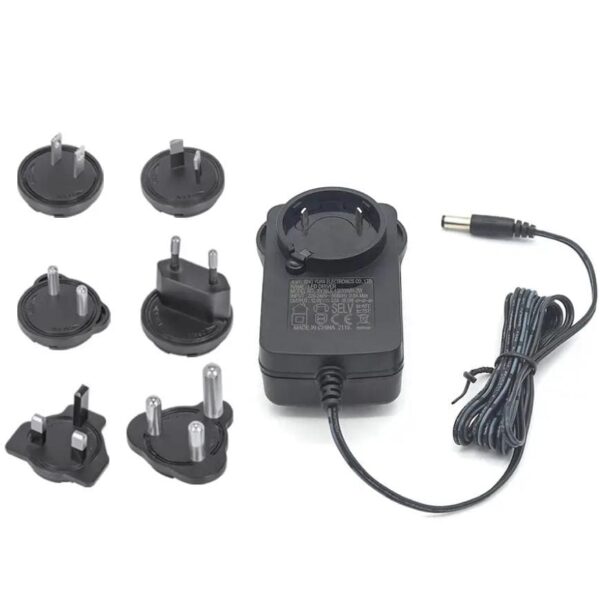

The 48W interchangeable plug power adapter is manufactured by a Chinese producer, operating in an ISO-certified factory with 18 years of export experience. Supported by a robust R&D team, it carries the trusted SMARTPOWER brand. The adapter features interchangeable plugs compatible with US, EU, UK, and AU standards. It is certified to meet UL, CE, FCC, TUV, UKCA, and PSE standards, ensuring safety and quality.
With output specifications including 5V6A, 9V5A, 12V4A, 15V3.2A, 18V2.67A, 24V2A, and 48V1A, this adapter is suitable for various devices. It efficiently powers smartphones, tablets, laptops, monitors, and more.
This versatile adapter finds applications in homes, offices, schools, and travel settings. It is a reliable solution for charging your devices, providing convenience and peace of mind.
Choose the 48W interchangeable plug power adapter for its interchangeable plugs, international certifications, and wide range of output options. It is a dependable power solution for diverse applications, meeting your device charging needs with efficiency and reliability.
SMARTPOWER 48W interchangeable ac/dc adapter Specification:
| Item | 48W interchangeable power adapter, 48W detachable plug power adapter, 48W exchangeable power adapter | |
| Type: | Wall mounted power adapter interchangeable plugs | |
| Material | PC Fireproof Material | |
| INPUT | 100-240VAC 50/60Hz 1.A max | |
| Output | 5V6A, 9V5A, 12V4A, 15V3.2A, 18V2.67A 24V2A, 48V1A detachable power adapter Or consult us for specific voltage and current to see if it can be customized or not |
|
| Features | Ripple & Noise | <120mV ( <50mV for audio product ) |
| Efficiency | ERP / CEC-VI standard CoC Tier 2 | |
| Installing | Available for the system of Safety Class I/II | |
| Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing |
| Storage Temp | -20 ~ +85℃ (Refer to “Derating Curve”) | |
| Storage Humidity | 20 ~ 90% RH non-condensing | |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| Cooling Method | by NTC (natural cooling) | |
| Safety&EMC | Safety Standard | IEC62368, IEC60335, IEC61558, IEC1310, IEC61347 |
| Safety Approvals | CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH for more information, please contact us. |
|
| EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
| MTBF | 5K hrs min. MIL-HDBK-217F (25℃) | |

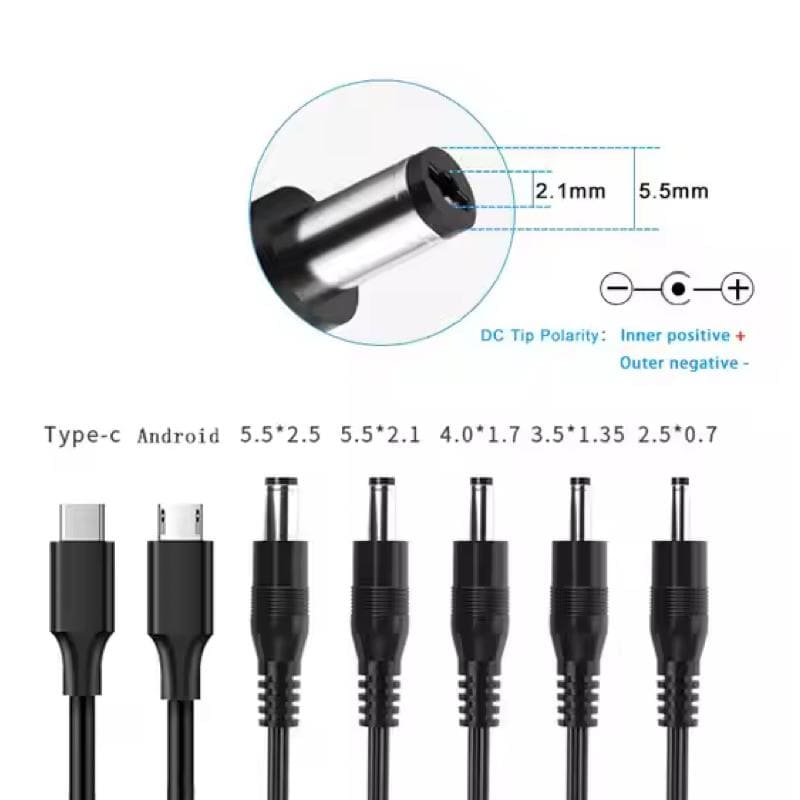

| Machanicals | DC Connectors | USB-A, USB-C, 5.5×2.1mm, 5.5×2.5mm, 4.0×1.7mm, 3.5×1.35mm and more available |
| Dimension | 94.0×46.5×49.0mm (LxWxH) | |
| Packing | 240g; 54pcs/14.5Kg/0.056CBM | |
| Application | Advantage | Ultra-small size, light weight, streamline, fully sealed and easy to carry Low-cost design, high reliability, ultrasonic lamination, fireproof housing constant voltage mode, high precision, low noise |
| usage | sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc. facial machines, hair removal device, etc. massage gun, E-bike, scooter, etc. |
|
MODEL LIST
| 48W interchangeable plug POWER ADAPTER | ||||||
| POWER | MODEL | INPUT | OUTPUT VOLT |
OUTPUT CURRENT |
Certificates | PLUG |
| 48W Series | SP-PAI050600-04 | 100-240VAC | 5V | 6.0A | UL,CE,FCC, RCM,C-TICK, UKCA | interchangeable |
| SP-PAI090500-04 | 9V | 5.0A | ||||
| SP-PAI120400-04 | 12V | 4.0A | ||||
| SP-PAI180266-04 | 18V | 2.66A | ||||
| SP-PAI240200-04 | 24V | 2.0A | ||||
| SP-PAI360133-04 | 36V | 1.33A | ||||
| SP-PAI480100-04 | 48V | 1.0A | ||||
