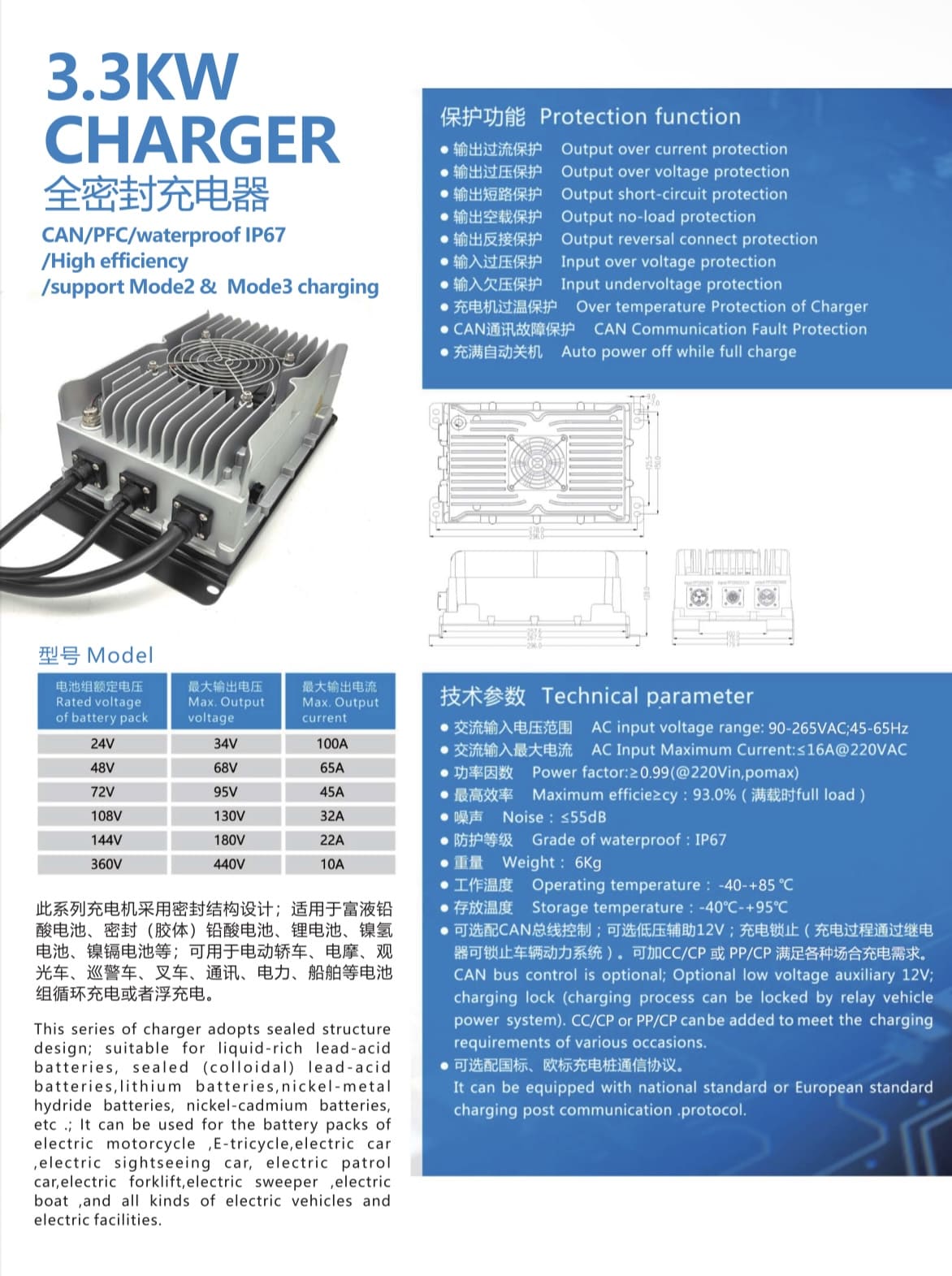

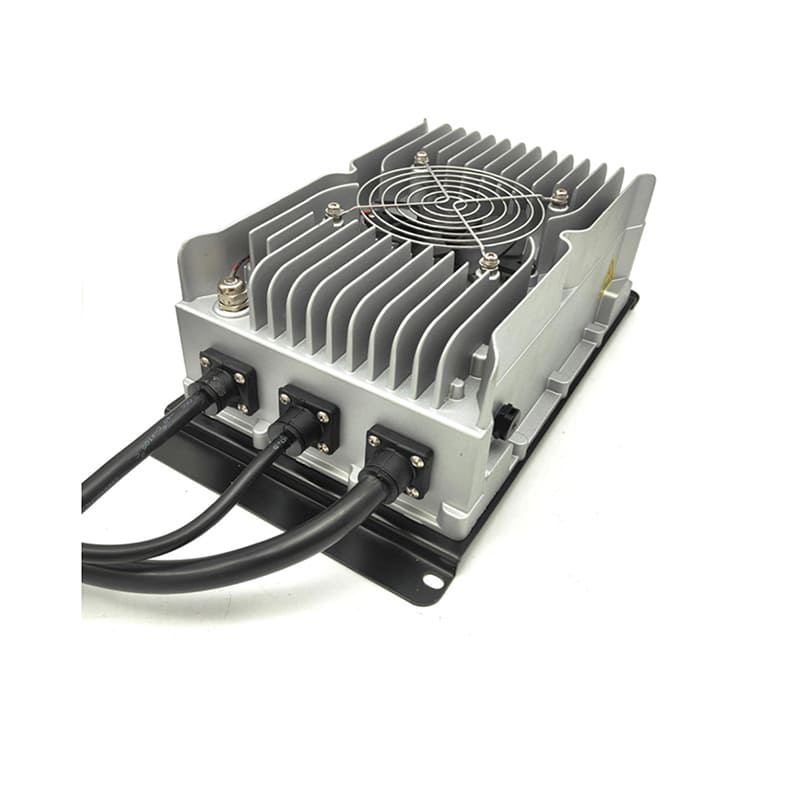

OBC Charger 3.3KW On Board Charger

Features(Support customization):

1. AC input voltage range:90-265VAC;45-65Hz

2. AC Input Maximum Current:≤6A@220VAC

3. Power factor:≥99(@220Vin,pomax)

4. Maximum efficiency:93.0%(full load)

5. Noise:≤55dB

6. Grade of waterproof:IP67

7. Weight:6kg

8.Application:liquid-rich lead-acidbatteries, sealed(coloidal)lead-acidbatteries, lithium batteries, nickel-metalhydride batteries, nickel-cadmiumbatteries, etc .

Contact & Share

Technical parameter

1. AC input voltage range:90-265VAC;45-65Hz

2. AC Input Maximum Current:≤6A@220VAC

3. Power factor:≥99(@220Vin,pomax)

4. Maximum efficiency:93.0%(full load)

5. Noise:≤55dB

6. Grade of waterproof:IP67

7. Weight:6kg

8. Operating temperature:-40℃-+85℃

9. Storage temperature:-40℃-+95℃

10.CAN bus control is optional; Optional low voltage auxiliary 12V,charging lock (charging process can be locked by relay vehiclepower system). CC/CP or PP/Cp canbe added to meet the chargingrequirements of various occasions.

Specification:

Charger type	lifepo4 charger , Li-ion charger and lead acid charger
Input voltage	110V or 220V or 150v-300v
Output voltage	100V
Color	Silver / black / customized
Max Power	Can be customized
Control mode	Intelligent independent digital control chip
Customize charging way	Yes. (Pre-charging, automaticly shut off, over charging protection etc)
Efficiency	85-88%
Warranty	2 years
Case	Aluminum / plastic
Application	Electric motorcycles, sweeper, goft car, e-scooter, forklift, storage energy etc.
