24W Wall Mounted power adapters Specification:
| Product Name | 24W power adapter, 24W AC/DC adapter, 24W power adaptor | |||
| Type | plug in adapter/wall mounted adapter | |||
| Material | PC Fireproof Material | |||
| Input | 100-240VAC ± 10%; 50/60Hz; 0.6A Max or 0.85A Max; | |||
| Output | 6V4A, 9V2.5A, 12V2A, 15V1.6A, 24V1A, 48V0.5A Or consult us for specific voltage and current to see if it can be customized or not |
|||

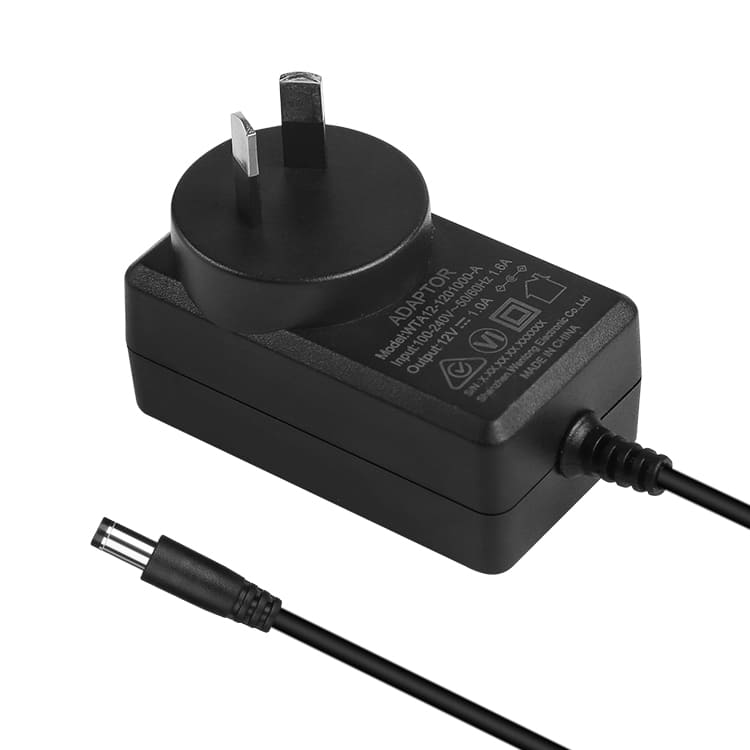

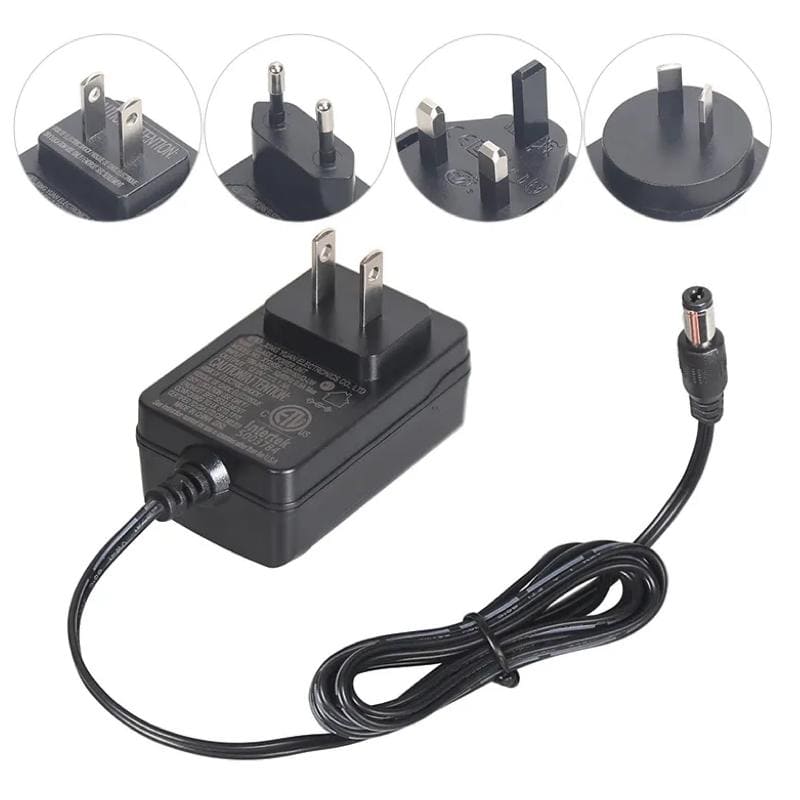

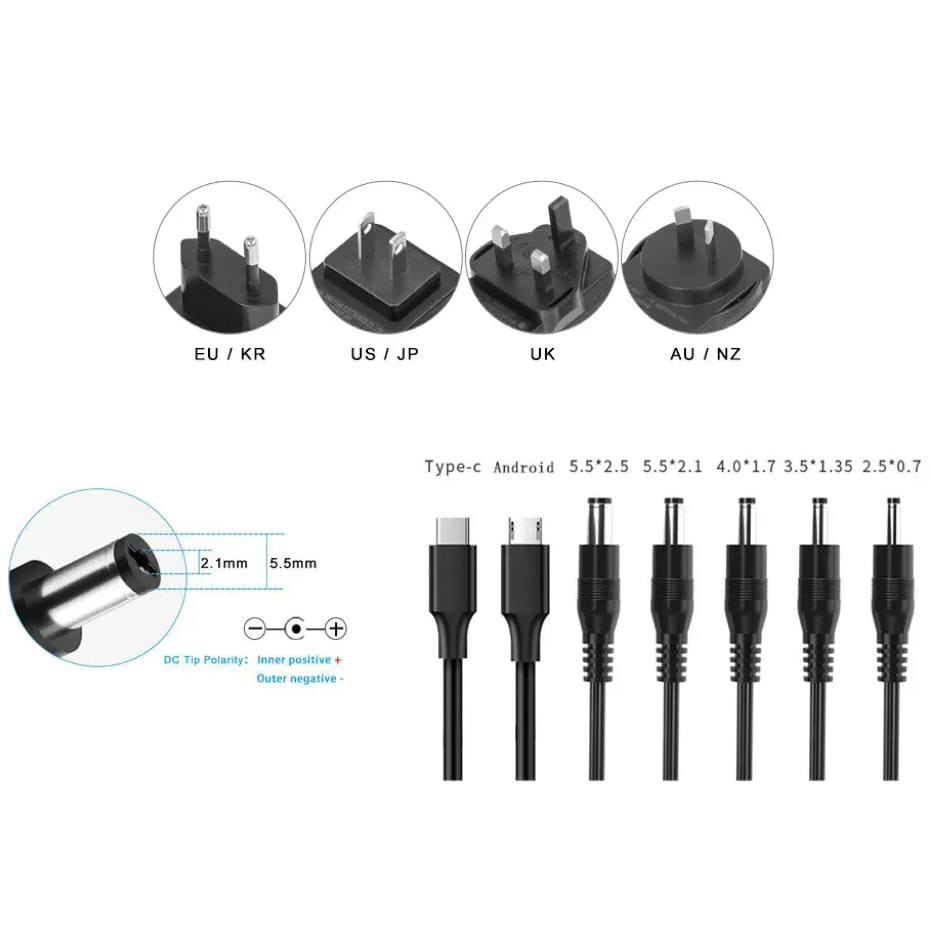

| AC Plugs | CN/US/JP/EU/KR/UK/AU/NZ, locking-type plug or detachable-type plug | |||
| Protection | Over-temperature protection, over-charge, over-voltage, over-current, short circuit protection | |||
| Advantages | Ultra-small size, light weight, streamline, fully sealed and easy to carry Low-cost design, high reliability, ultrasonic lamination, fireproof housing constant voltage mode, high precision, low noise |
|||
| Certificates | CCC,UL, cUL,CE, FCC, RCM, C-TICK, TUV, UKCA, KC, and BIS | |||
| Energy efficiency | ERP / CEC-VI CoC Tier 2 standard | |||
| Safety standards | IEC62368, IEC60601, IEC1310, IEC61558, IEC60335, IEC61347 | |||
| Package | Specialized shipping box for sample PP bag package in outer carton with die cut cards protection for bulk order custom available |
|||
| Usage | Intelligent home appliance | medical beauty machines | Consumer electronics | Sports equipment |
| sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc. | facial machines, hair removal device, etc. | tablet, laptop, switch, set top box, electronic musical instrument, etc. | massage gun, E-bike, scooter, etc. | |
MODEL LIST:
| 24W AC/DC Wall mounted POWER ADAPTER | |||||
| POWER | MODEL | INPUT | OUTPUT VOLT |
OUTPUT CURRENT |
PLUG |
| 24W series | SP-PAW060400-US | 100-240VAC | 6V | 4.0A | US / EU/ AUS / UK / India AC plug optional |
| SP-PAW090250-US | 9V | 2.5A | |||
| SP-PAW120200-US | 12V | 2.0A | |||
| SP-PAW150160-US | 15V | 1.6A | |||
| SP-PAW180133-US | 18V | 1.33A | |||
| SP-PAW240100-US | 24V | 1.0A | |||
| SP-PAW480050-US | 48V | 0.5A | |||
