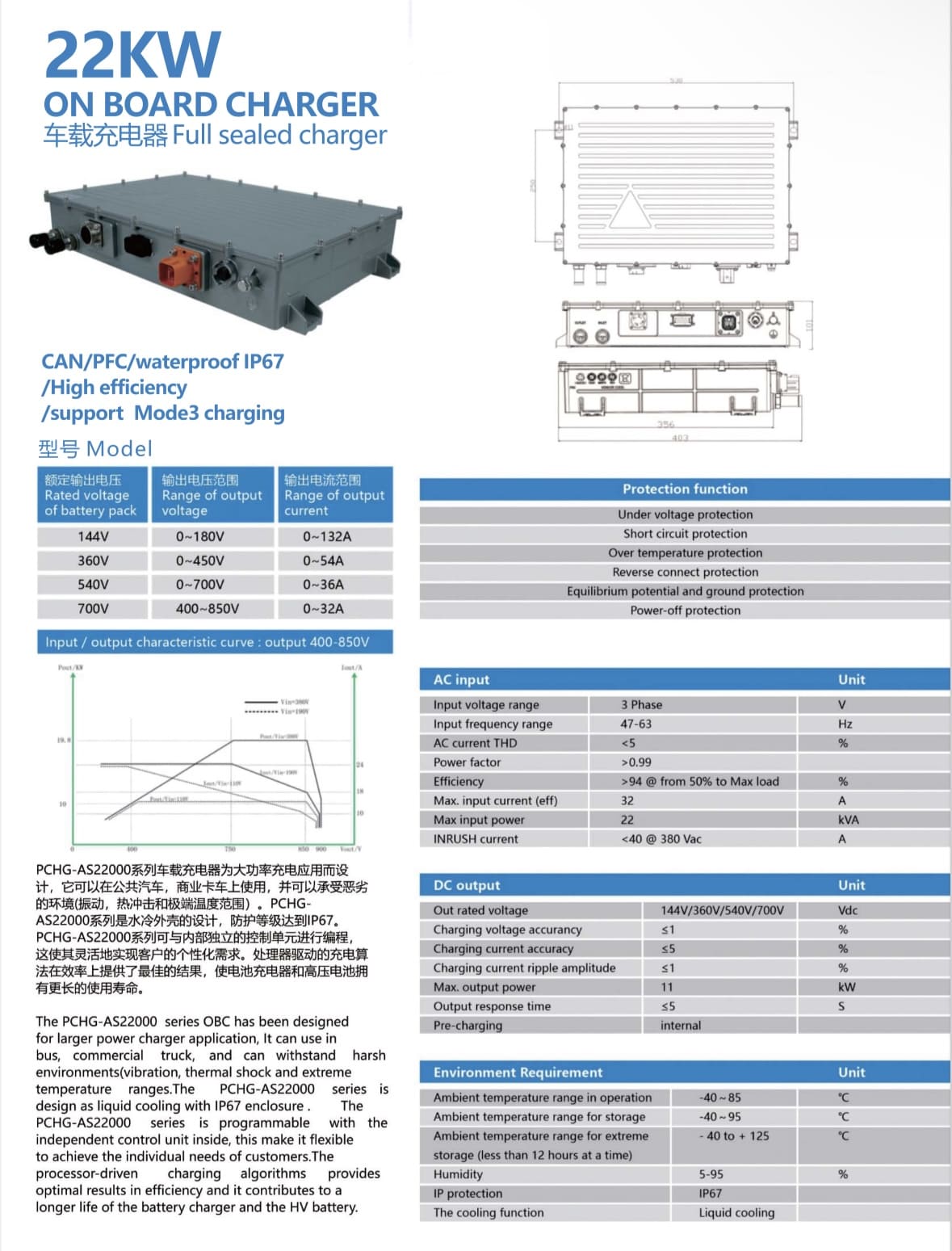

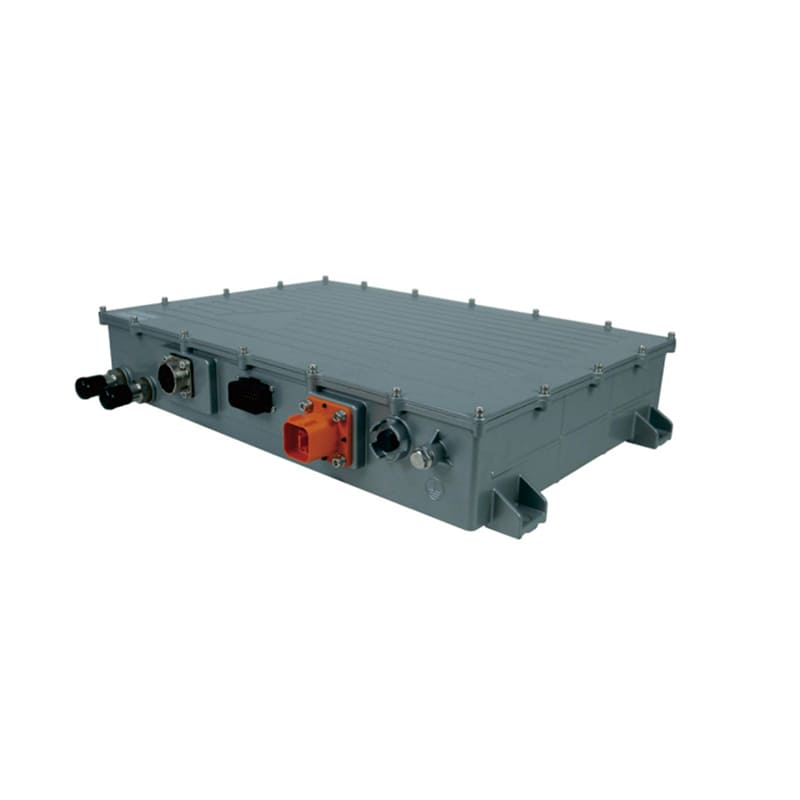

Main Feature
★Compliance with three phase AC input .
★Compliance with SAE J1772 and EN61851.
★Compact and lightweight construction.
★Constant power and constant current charging capable.
★Vibration-resistant and IP67 for on-board use.
★Firmware up-gradable over CAN bus.
★DC High Voltage Interlock Loop (HVIL) protection.
★Precise and efficient charging power.
Function and Feature:
| AC input | 3-phase | Unit |
| Input voltage range | 152– 465 | V |
| Input frequency range | 47 – 63 | Hz |
| AC current THD | < 5 | % |
| Power factor | > 0.99 | |
| Efficiency | > 94 @ from 50% to Max load | % |
| Max. input current (eff) | 64 | A |
| Max input power | 22 | kVA |
| INRUSH current | < 40 @ 380 Vac | A |
| DC output | Unit | |
| Voltage programmable range | 400 – 850 | Vdc |
| Min. voltage Constant Power range | 700 | Vdc |
| Charging voltage accurancy | ≤1 | % |
| Charging current accuracy | ≤5 | % |
| Charging current ripple amplitude | ≤1 | % |
| Max. output power | 11 | KW |
| Max. charging current | 18 | Adc |
| Output response time | ≤5 | S |
| Pre-charging | internal |
| Charging function | |
| Charge function | Charging according to BMS communication |
| Communication function | CAN bus control |
| Communication protocol (to BMS) |
By SAE J1939/Defined by customer |
| CAN communication baud rate | 250/500 kbps, without terminate resistor. |
| AC charge control | Compliant SAE J1772 and EN 61851 When SAE J1772 is enabled, the charger is fully compliant with SAE J1772 Power Station (EVSE SAE J1772 compliant, level 1 and 2). When EN 61851 is enabled, the charger is fully compliant with EN 61851 Power Station. |
| Wake-up | 12V signal Hardwire wake up BMS wake-up command CP,CC signal wake up |
Input/output characteristic curve
Connection definition
Dimension and weight:
Application:
