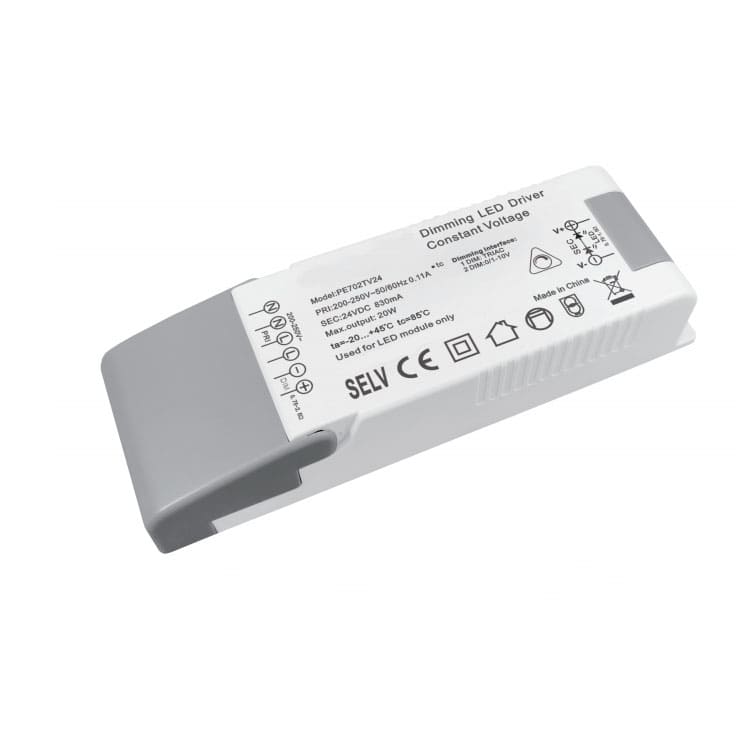

20W Constant Voltage Triac Dimmable LED Driver
,

20W Constant Voltage Triac Dimmable LED Driver

Features:

1. Constant voltage thyristor dimming power supply dimming range 0-100%

2. Support leading edge tangent dimmer and leading edge dimming system

3. Support 0-10V / 1-10V / 10V PWM / 100k potentiometer dimming

4. No stroboscopic dimming, super compatible dimming power supply

5. Protection type: short circuit / over current / over voltage

6. Unique design, slow on and slow off function

7. Suitable for constant voltage LED lamp band and other applications

8. Meet SELV safety extra low voltage standard

9. 3 years warranty

10. Size: 135*43.5*26.5mm

SKU: PE702TV12/PE702TV24 Categories: , Tags: , , , , , , , , , , , Brand:
Send Inquiry
Contact & Share

20W Constant Voltage Triac Dimmable LED Driver Model list:

Triac & 0/1-10V 2 in 1 constant voltage dimming

Series Model Input Power PF Output Voltage Output Current
PE702
20W		 PE702TV12 AC200V-250V 20W 0.6PF 12V 1670mA
PE702TV24 24V 830mA
PE-L80TV
80W		 PE-L80TV24 AC200V-250V 80W 0.6PF 24V 3.33A
PE-TL60TV
60W		 PE-TL60TV24 AC200V-250V 60W 0.6PF 24V 2.5A
PE-TL60TV12 AC200V-250V 12V 5A
PE-TL100TV
100W		 PE-TL100TV24 AC200V-250V 100W 0.6PF 24V 4.2A
PE-TL100TV12 AC200V-250V 12V 8.3A
PE-TL150TV
150W		 PE-TL150TV24 AC200V-250V 150W 0.6PF 24V 6.25A
PE-TL120TV12 AC200V-250V 120W 12V 10A
PE-TL250TV
250W		 PE-TL250TV24 AC200V-250V 250W 0.6PF 24V 10.5A
PE-TL300TV
300W		 PE-TL300TV24 AC200V-250V 300W 0.6PF 24V 12.5A

20W Constant Voltage Triac Dimmable LED Driver Application:

1. Constant voltage lamp strip, hard lamp strip

2. Support front cut system dimming

3. Villa, high-end hotel and other applications

4. Ultra thin light box

20W Constant Voltage Triac Dimmable LED Driver Specification:

Model PE702TV24 PE702V12
OUTPUT Output Voltage 24Vdc 12Vdc
Output Current 830mA Max 1670mA Max
Max Output Voltage 24Vdc ±0.5v 12Vdc ±0.5v
Output Power 20W Max 20W Max
Strobe Level No flicker
Dimming Range 0~100%，
PWM Dimming Frequency >3600K
INPUT Dimming Interface Triac,0-10V/1-10V/10V PWM/100KResistor DIM
Input Voltage Range 200-250Vac
Frequency 50/60Hz
Input Current <0.2A
Efficiency(typ.) 83-85%
Inrush Current(typ.) Cold start2A
Anti Surge L-N: 1.8kV
Leakage Current <0.5mA/230Vac
ENVIRONMENT Working Temperature ta: 45°C tc: 85 °C
Working Humidity 20 ~ 95%RH, non-condensing
Storage Temp., Humidity -40 ~ 80°C , 10~95%RH
Waterproof grade IP40
PROTECTION Over Load Protection Shut down the output when rated power≥102%, auto recovers.
Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
Non-load Protection output Constant Voltage.
SAFETY Withstand Voltage I/P-O/P: 3750Vac
Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard IEEE 1789
OTHERS Dimension 135×43.5×26.5mm(L×W×H)
Packing PE bag
Weight(G.W.) 130±10g

Dimensions:

Wiring Diagram:
