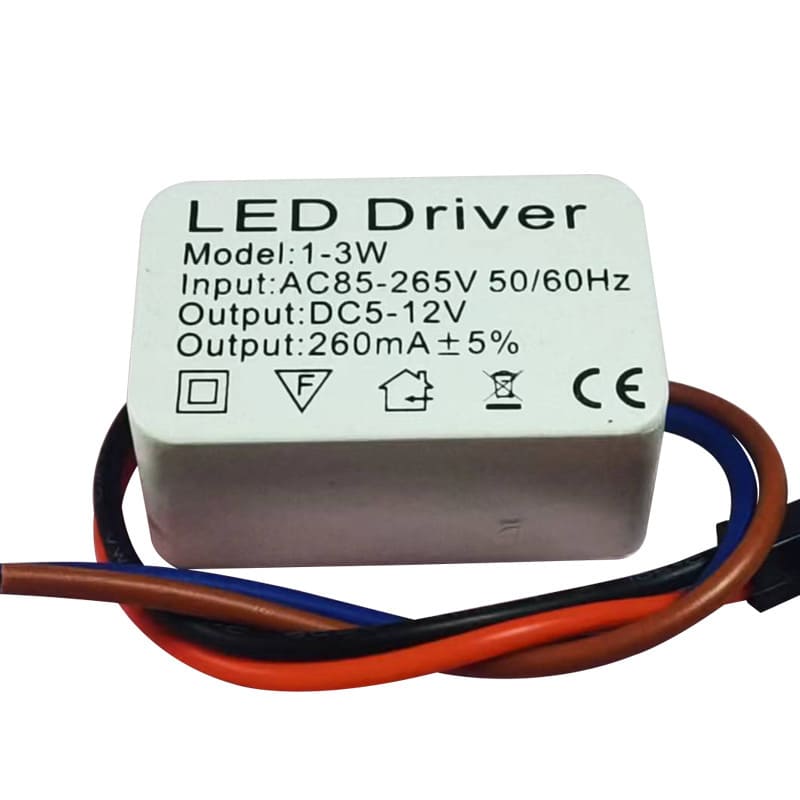

12W constant current led driver Specification
| Item | Value |
| Warranty(Year) | 3-Years |
| Lighting solutions service | Lighting and circuitry design, Project Installation |
| Place of Origin | China |
| Brand Name | SMARTPOWER |
| Model Number | SP-CCLD012 |
| Output Power | 12W |
| Output Type | Single/Wide |
| Output Voltage | 9-40V |
| Input Voltage | 85-265V |
| Output Frequency | 50/60Hz |
| output Current | 250-300mA |
| Product Name | LED Panel/Down/Spot/grille Light Power Supply |
| PFC | 0.9 |
| Shell | UL94-V0 Resistant Shell |
| L*W*H | 95*36*24cm |
| Efficiency | 80%(230Vac) |
| Lightning protection | 500V |
| THD | ＜15% |
| Certification | CE/CB/CCC/TUV/SAA |
MODEL LIST:
| MODEL | POWER | INPUT AC | OUTPUT-DC | OUTPUT Current (mA) | POWER FACTOR | DIM（LxWxH） | Certificates |
| SP-CCLD012 | 3-7W | 85-265VAC | 9-24V | 175-300 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA |
| SP-CCLD012 | 3-7W | 25-40V | 75-175 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA | |
| SP-CCLD012 | 8-12W | 25-45V | 200-300 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA | |
| SP-CCLD012 | 8-12W | 25-45V | 175-330 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA | |
| SP-CCLD012 | 10-15W | 25-40V | 325-375 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA |
